Pixel art tiles, tilesets and tilemaps

By · October 17, 2026

A tile is one small sprite, like a puzzle piece. A tileset is a group of tiles that together show an object, like a pavement with a grating. A tilemap is the whole scene built from tilesets. Draw my 9 part tileset below, one step at a time.

This sprite is wide. It's easier to draw on a computer, or with your phone turned sideways.

Step 1

Colors for this step
Tools
Guide

Show the finished step

Tile, tileset, tilemap

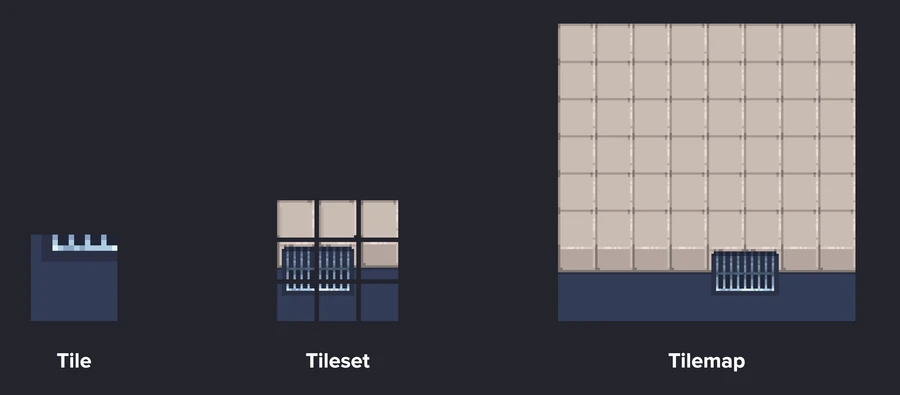

Roman's slide: a single tile, a tileset of nine tiles with a grating, and a tilemap built from it
  • Tile: a small sprite, a piece of the puzzle. Here every tile is 16 by 16 pixels.
  • Tileset: a collection of tiles that shows a whole object or part of one: the grating, a piece of pavement, a piece of road.
  • Tilemap: the bigger composition built from tilesets: the ground, the terrain, the whole level.

Why we need them

Can you imagine drawing every tile of a level by hand? Tiles speed up and automate the work. You draw one small artwork and reuse it everywhere. And when you change one tile in the set, the change shows up in every place it's used, without touching each copy by hand.

One tileset, many tilemaps

A tilemap: a wide pavement with one grating at the curb
A pavement with a grating
A tilemap variation: the same tiles arranged as a trench of road between two pavements
The same 9 tiles, a different street

Both maps use exactly the nine tiles you just drew. In Aseprite: paste the tileset on a canvas that fits the grid, right click the layer and choose Convert to Tilemap. Then you paint with whole tiles. In manual mode, editing one tile changes every copy of it. In auto mode, editing a placed tile creates a new one and leaves the others alone.

Make tiles that tile

The tiles have to fit the grid exactly, by size and by layout, or the editor can't slice them. And the edges have to match: the pixels on the right edge of one tile continue on the left edge of the next. Place four copies side by side and look for a seam. If you see one, fix those edge pixels. Then try your own set: recolor the stones, add a second grating, or redo it with the bricks from the brick wall lesson.
